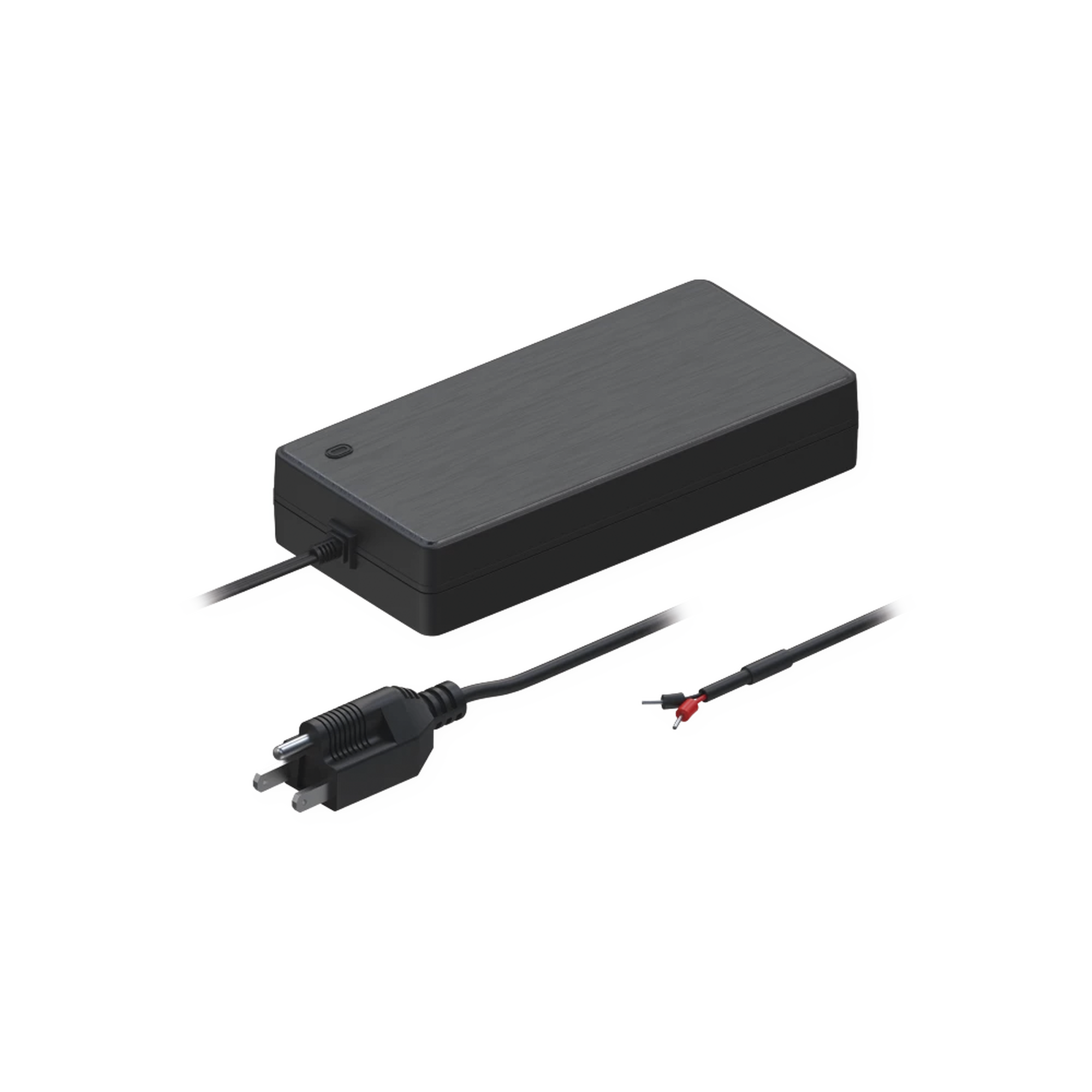

Fuente de alimentación de 2 pines, 54 Volts 250W
,

Fuente de alimentación de 2 pines, 54 Volts 250W

Availability:

29 disponibles
Compare

$3,016.74 $3,528.24

29 disponibles

Compare
TECHNICAL DATA

  • GENERAL



  • Input voltage

    100 – 240 VAC

  • Input frequency

    50 / 60 Hz

  • Input current

    3.9 A

  • Input connector

    US (Type A)

  • Output voltage

    54 VDC

  • Output current

    4.62 A

  • Output connector

    2-pin, with cord end terminals

  • Weight

    910 g



  • ADDITIONAL



  • Input voltage range

    90 – 264 VAC

  • Input frequency range

    47 – 63 Hz

  • Maximum input inrush current

    60 A

  • Output voltage maximum deviation

    51.3 – 56.7 VDC

  • Short circuit protection

    ✓

  • HIPOT (dielectric withstand test)

    Primary to Secondary: 1500 VAC

  • Certification

    Safety: IEC62368-1 (CB Scheme), UL 62368-1:2014, CAN/CSA-C22.2 No. 62368-1-14

    SKU: PR320USA Categorías: ,
