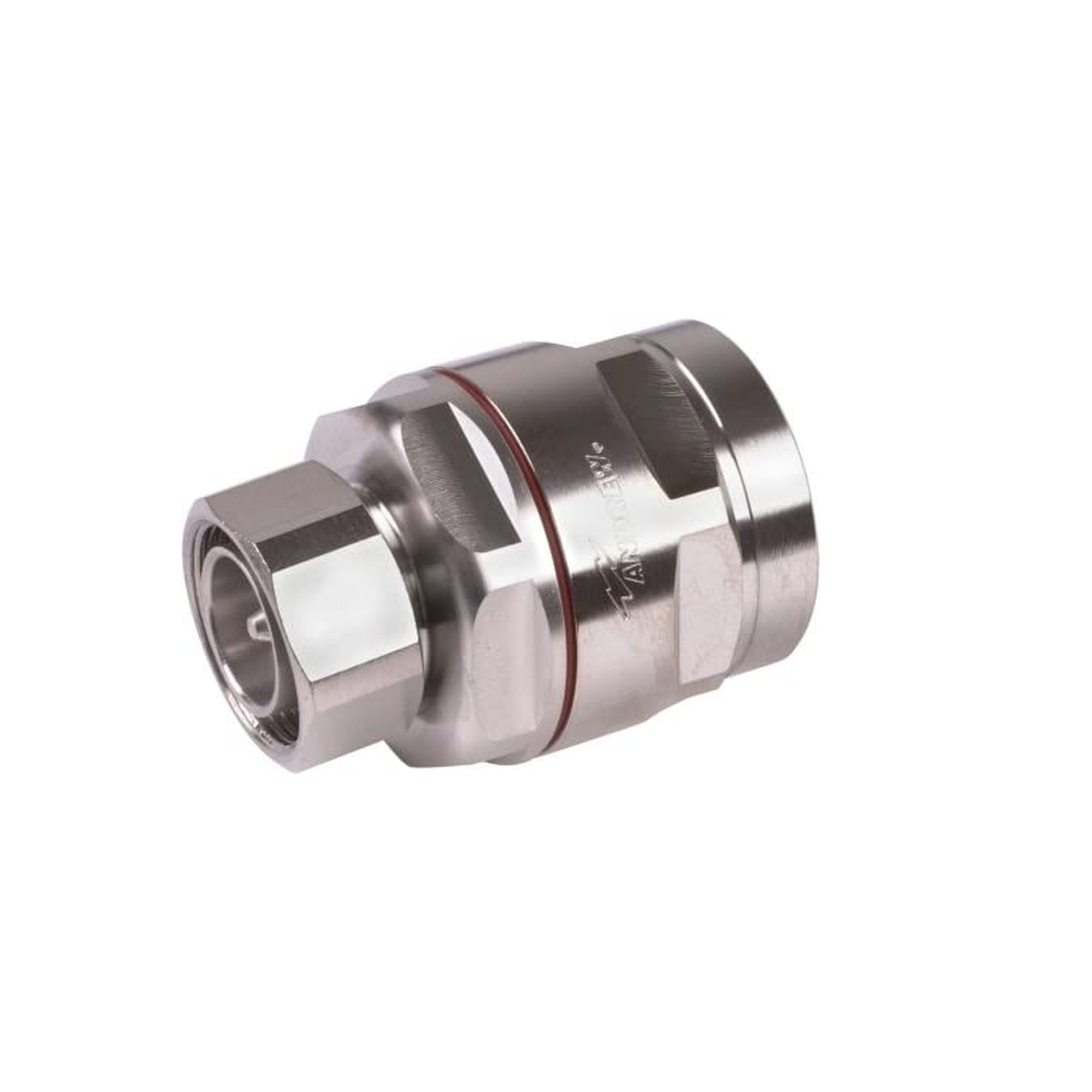

Conector DIN 7-16 para cable FXL1480 y AVA6-50
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$2,851.90
Agotado
Agotado
10
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
Métodos de Pago:
Description
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3300 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 1415.00 V |
| dc Test Voltage | 4000 V |
| Outer Contact Resistance, maximum | 0.80 mOhm |
| Inner Contact Resistance, maximum | 1.50 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 3.0 kW @ 900 MHz |
| Peak Power, maximum | 40.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -130 dB |
